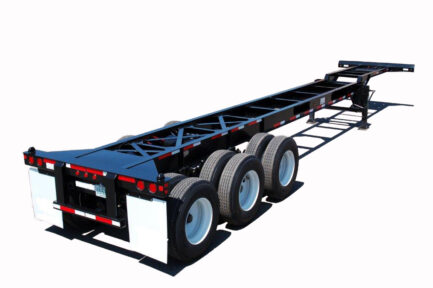

Buy 40ft Gooseneck 3–Axle Chassis Online – Maximum Reliability for Heavy Loads

Elevate your transportation capabilities with the 40ft Gooseneck 3–3-axis chassis, designed to carry one 40ft ISO container with exceptional stability and increased payload capacity. This tri-axle model not only boosts the Gross Vehicle Weight Rating (GVWR) to 85,000 lbs but also ensures affordability without compromising on durability and performance. Ideal for handling heavier loads, this chassis is a perfect blend of robust construction and cost-effectiveness, making it a top choice for logistics professionals.

Engineered for Enhanced Capacity and Durability

Superior Construction:

• Robust Steel Framework: Built with ASTM-A572, Grade 50, or ASTM-A607, Grade 50 steel, ensuring high tensile strength and long-term durability.
• High-Quality Fasteners: All structural fasteners are Grade 5 or better, zinc-coated for optimal corrosion resistance.

Key Specifications:

• Tare Weight: Approximately 8,500 lb.
• GVWR: 85,000 lb., suitable for heavier cargo without the risk of overloading.

Advanced Features for Optimal Functionality

Flexible Container Compatibility:

• Accommodates One 40ft ISO Container: Specifically designed with ISO standard twistlocks on both front and rear bolsters for secure container placement.
• Eyebrow Protection on Rear Bolster: Enhances safety and container integrity during transport.

High-Performance Chassis Components:

• Landing Gear: AAR-approved two-speed with a square leg, providing a lift capacity of 55,000 lbs and a static load capacity of 160,000 lbs.
• Lighting and Electrical Systems: Features LED lighting and a 12-volt, 7-way split pin receptacle plug; modular wiring harness for reliable power distribution.

Operational Excellence with 40ft Gooseneck 3–Axle Chassis

Braking and Suspension Systems:

• Brakes: Steel outboard-mounted drums with synthetic grease lubrication and a 2S1M brake system, equipped with 30/30 brake chambers, ensure robust stopping power.
• Suspension: Three-leaf spring ride offers smooth transit even under full load conditions.

Enhanced Mobility and Safety:

• Axles and Wheels: Includes three 5″ round, tapered, 71.5″ long axles with a 49-inch center spread, providing balanced weight distribution and stability.
• Kingpin and Axle Placement: The Kingpin location at 30.5 inches from the rear face of the front bolster enhances maneuverability and load distribution.
